Function:

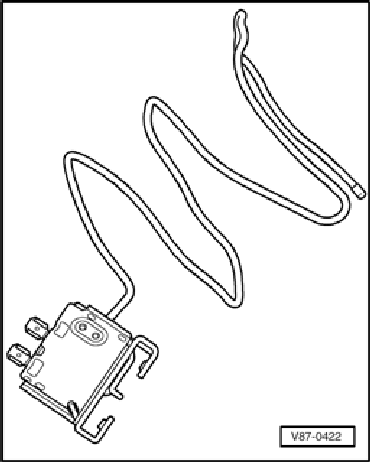

The temperature switch for evaporator -E33- senses the temperature between the cooling fins of the evaporator. It prevents the possibility of ice forming between the evaporator cooling fins by interrupting the current to the air conditioner compressor magnetic clutch if the temperature at the fins falls to the freezing point of moisture in the air.

The insertion depth of the sensor tube is marked on the device or is given in the repair manual → Rep. gr.87.

Note

Fitted to VW vehicles with air conditioning systems driven by V-belt

Temperature switch for evaporator -E33

Radiator fan control unit -J293

Note Available in various designs, sometimes fitted to the radiator fan -arrows-. This control ...

Evaporator output temperature sender -G263- or evaporator temperature sensor -G308

Function: The evaporator output temperature sender -G263- or evaporator temperature sensor -G308- reads the temperature downstream from the eva ...
