Function:

The evaporator output temperature sender -G263- or evaporator temperature sensor -G308- reads the temperature downstream from the evaporator. This value is transmitted to the air conditioning system control unit and serves as a reference signal for regulating the air conditioner compressor. This prevents icing of the evaporator.

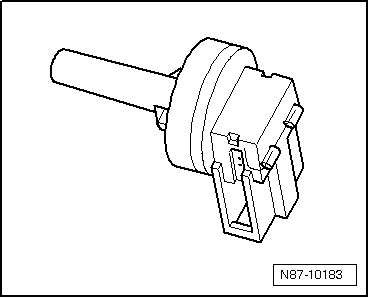

Evaporator output temperature sender -G263- or evaporator temperature sensor -G308
