Volkswagen Golf Service & Repair Manual: Radiator fan control unit -J293

Volkswagen Golf Service & Repair Manual / Air conditioning system with refrigerant R134a / General information on refrigerant circuit / Electrical components not installed in refrigerant circuit / Radiator fan control unit -J293

Note

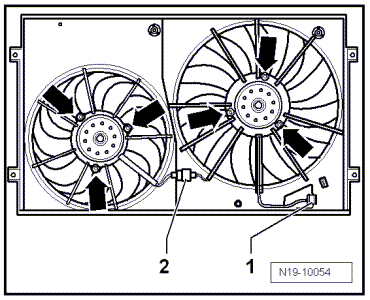

Available in various designs, sometimes fitted to the radiator fan -arrows-.

This control unit switches the magnetic clutch and thus the air conditioner compressor on and off. It controls the radiator fan, and for vehicles with high-pressure sender -G65- or refrigerant pressure and temperature sender -G395-, it calculates the pressure in the refrigerant circuit.

Radiator fan control unit -J293

Note Available in various designs, sometimes separately. This control unit switches the magnetic clu ...

Temperature switch for evaporator -E33

Function: The temperature switch for evaporator -E33- senses the temperature between the cooling fins of the evaporator. It prevents the possib ...
