Moving to service position

–	Open glove compartment lid -2-.

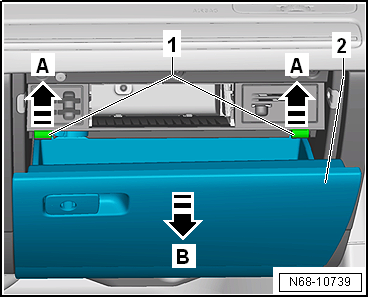

–	Push limit stops -1- for glove compartment lid -2- upwards -arrows A-.

–	At the same time, open glove compartment lid -2- further -arrow B-. While doing this, carefully pull rack out of damper element.

Moving from service position

–	Close glove compartment lid slowly. While doing this, carefully slide rack of braking element into damper element.

–	Close glove compartment lid further and engage it behind limit stops.
