Removing
–  Move glove compartment lid to service position → Chapter.
–  Disconnect connector for glove compartment light switch -E26- on damper element -1-.

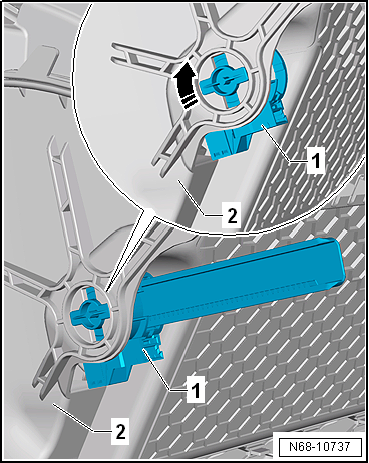

–  Turn damper element -1- clockwise -arrow- by 90° (1/4 turn) and remove it from glove compartment -2-.


Removing and installing damper element for glove compartment lid

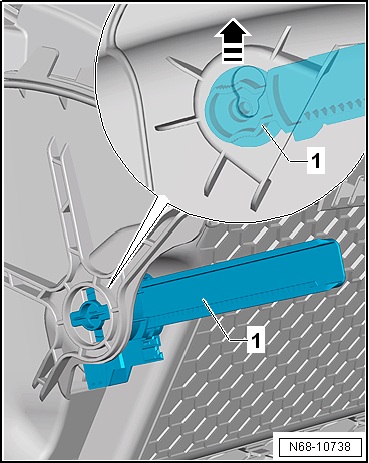

–  Move/release rack -1- in -direction of arrow- and remove it from glove compartment lid.
Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.
