Volkswagen Golf Service & Repair Manual: Removing and installing glove compartment opener

Special tools and workshop equipment required



Torque wrench -V.A.G 1783-
Torque wrench -V.A.G 1783-

Removing
–  Open glove compartment.

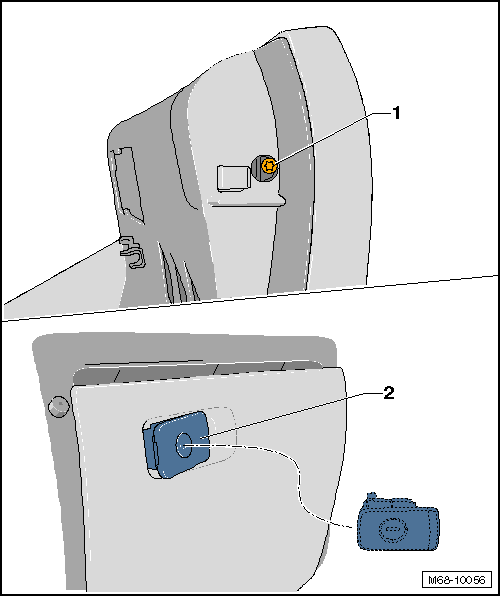

–  Unscrew bolt -1- and remove unlocking button -2- from glove compartment cover.

Removing and installing glove compartment opener


Installing
Installation is carried out in reverse order.
Specified torques

Component Specified torque
Release button on glove compartment lid 1.5 Nm
