Volkswagen Golf Service & Repair Manual: Renewing needle bearing in crankshaft

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Enginecrankshaft group, pistons / Crankshaft / Renewing needle bearing in crankshaft

Only vehicles with a dual clutch gearbox

Special tools and workshop equipment required

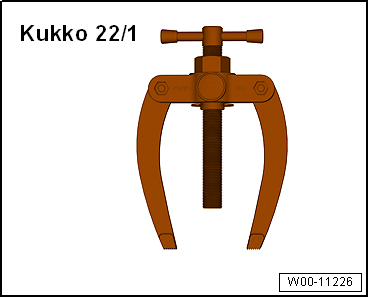

Adapter Kukko -22/1-

Renewing needle bearing in crankshaft

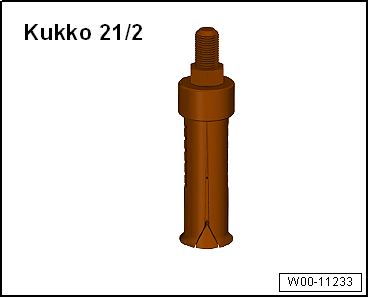

Puller -Kukko 21/2-

Renewing needle bearing in crankshaft

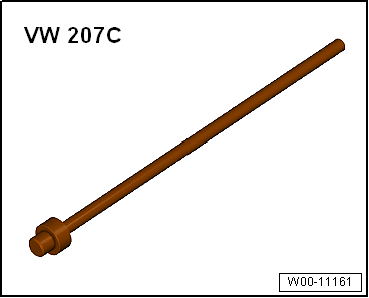

Drift -VW 207 C-

Removing

–	Remove gearbox → Rep. gr.34.

–	Pull out needle bearing using commercially available puller, e.g. Kukko -21/2- and Adapter Kukko -22/1-.

Installing

Renewing needle bearing in crankshaft

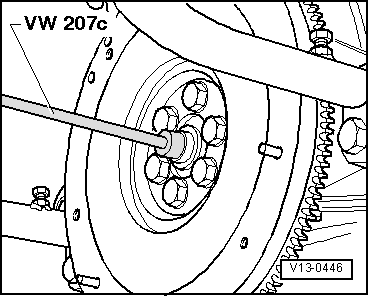

–	Drive in flush with drift -VW 207 C- or centring mandrel -3176-.

–	Install gearbox → Rep. gr.34.

Renewing needle bearing in crankshaft
