Volkswagen Golf Service & Repair Manual: Removing automatic distance control unit from and installing on retaining plate, variant 2

Volkswagen Golf Service & Repair Manual / Electrical system / Starter- current supply- CC / Adaptive cruise control / Removing automatic distance control unit from and installing on retaining plate, variant 2

Special tools and workshop equipment required
Calliper square -VAS 6335-
Removing
–  Remove adaptive cruise control unit -J428- → Chapter.

–  Turn quick-release fasteners -2- in -direction of arrow-.
–  Pull quick-release fasteners -2- off adjustment screws -1-.
–  Remove retaining plate -3- from adaptive cruise control unit -J428--4-.
Installing
Install in the reverse order of removal, observing the following:
  Note
Renew quick-release fasteners -2-.
The adjustment screws -1- in the adapter frame are pre-adjusted. Correct the adjustment as required → Fig..


Removing automatic distance control unit from and installing on retaining plate, variant 2

Adjusting adjustment screws

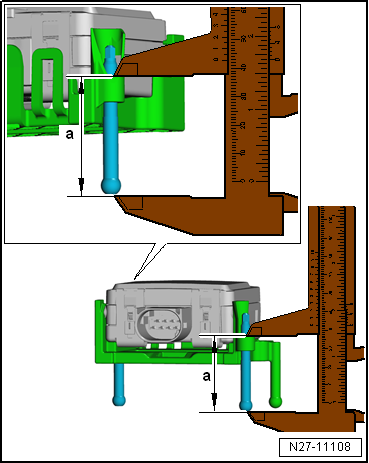

–  Using digital calliper -VAS 6335-, measure setting -a- of all adjustment screws and correct, if necessary.
Dimension -a- = 40.3 mm ± 0.5 mm
–  Set retaining plate -1- on quick-release fasteners -2-.


Removing automatic distance control unit from and installing on retaining plate, variant 2

–  Push new quick-release fasteners -2- onto adjustment screws and fixed mounting on adapter frame -3-.

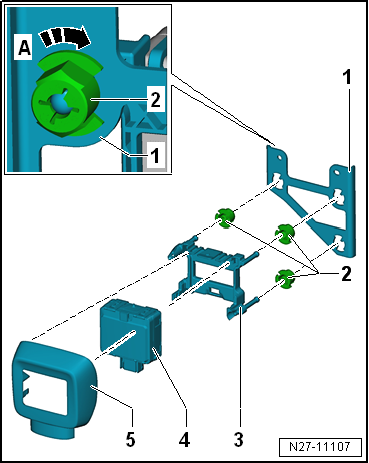

–  Turn quick-release fasteners -2- on back of retaining plate -1- to stop in direction of arrow -A-.
–  Install adaptive cruise control unit -J428- → Chapter.
–  Calibrate adaptive cruise control → Chapter.


Removing automatic distance control unit from and installing on retaining plate, variant 2

Removing automatic distance control unit from and installing on retaining plate, variant 2
  Note If the automatic distance control unit -J428- is renewed, start the respective function → Vehicle diagnostic tester. ...

Removing automatic distance control unit from and installing on adapter frame, variant 2
Removing –  Remove adaptive cruise control unit -J428- → Chapter.     ...
