Note
|
| Removing |
| – | Remove front door trim → General body repairs, interior; Rep. gr.70. |

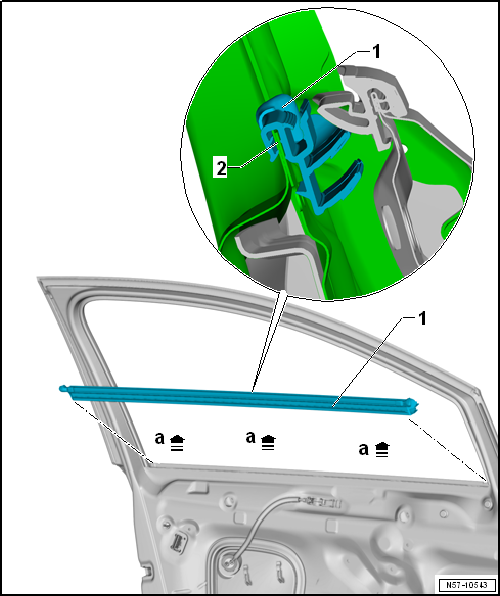

| – | Lift off window slot inner seal -1- uniformly from flange -2- without bending or distorting it. |
| Installing |
| – | Centre window slot inner seal -1--arrows a- and press it uniformly and by hand at front onto door flange -2-. |
Removing and installing window slot outer seal
Central lockingOverview of fitting locations - electrical and electronic components,
standard seat, seat of type "ergo Aktiv"
1 -
Massage control unit -J740-
Removing and installing
→ Chapter
Depends on equipment
2 -
Seat heating element
Heated seat cushion for driver seat -Z6
Heated seat cushion for front passenger seat -Z8
Depends on ...
Overview of fitting locations - front control motors, Climatronic, RHD
vehicles
1 -
Control motor for fresh air and air recirculation flap and air flow
flap -V425-
With potentiometer for fresh air/recirculated air and air flow flap
control motor -G644-.
Checking: with vehicle diagnostic tester
...
Cavity sealing, overview of body
Cavity sealing, bottom view of body
Note
The indicated areas have been treated with cavity sealant and must
be resealed following repairs.
Cavity sealing, side view of body
Illustration ...
