Volkswagen Golf Service & Repair Manual: Removing and installing wind deflector
|
|
|
| – | Open glass panel completely. |

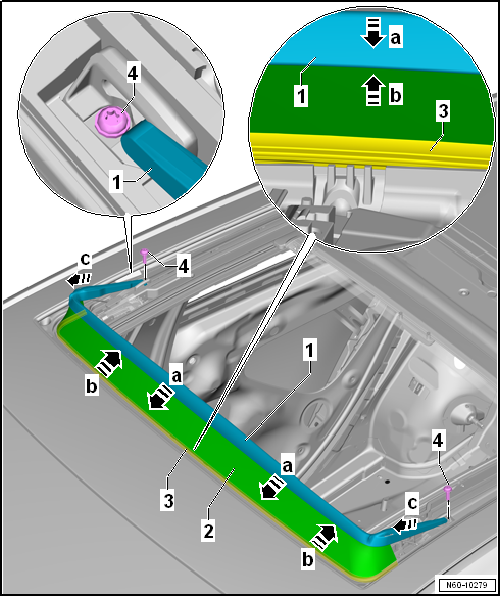

| – | Press wind deflector net -2- downwards -arrows a- to remove tension from it and hold it down. |
| – | Pull welting -3- out of assembly frame -arrows b-. |
| – | Remove bolts -4- on left and right. |
| – | Pull wind deflector off assembly frame -arrow c-. |
|
| – | Push wind deflector into assembly frame. |
| – | Tighten bolts -4- on left and right. |
| – | Press wind deflector net -2- downwards -arrows a- to remove tension from it and hold it down. |
| – | Press welting -3- into assembly frame. |
| Specified torques |
| Wind deflector → Chapter „Assembly overview - sliding sunroof“ |
