Volkswagen Golf Service & Repair Manual: Removing and installing tyre pressure sensor, metal valve body

Special tools and workshop equipment required

Torque wrench -V.A.G 1410- and 11 mm insert tool-V.A.G 1331-.
–  Push metal valve with rubber seal through the rim from the inside.
–  Fit chamfered washer and union nut from outside, and screw it in by hand.
–  Tighten union nut.
  Note
If bonded wheel trims are fitted, treat them with great care. The surface is susceptible to scratches.
If the wheel trim is damaged, renew wheel rim.
1)  Tyre Pressure Monitoring (TPMS): direct measurement. Tyre pressure sensor installed on metal valve in wheel; pressure and temperature values are sent and analysed periodically.
2)  TPLI+, indirect measurement No tyre pressure sensor is installed in the wheel. Instead, the rolling circumference and vibration on each wheel are compared by analysing the signals from the ABS sensors. The pressure loss is determined indirectly. If the tyre pressure changes, the speed and the vibration on the respective wheel will change as well.
3)  TPLI, indirect measurement No tyre pressure sensor is installed in the wheel. Instead, the rolling circumference on each wheel are compared by analysing the signals from the ABS sensors. The pressure loss is determined indirectly. If the tyre pressure changes, the speed on the respective wheel will change as well.


Removing and installing tyre pressure sensor, metal valve body

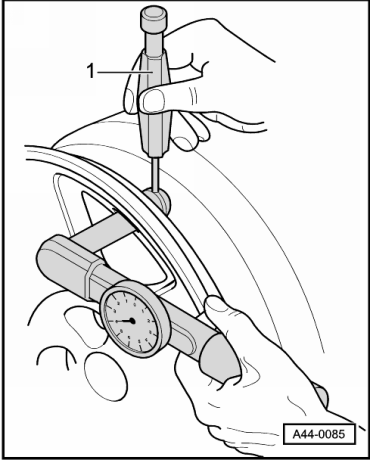

–  Use a suitable tool -1- (e.g. a 2 mm drill bit) to prevent turning.
  Note
If bonded wheel trims are fitted, treat them with great care. The surface is susceptible to scratches.
If the wheel trim is damaged, renew wheel rim.
Specified torques → Anchor


Removing and installing tyre pressure sensor, metal valve body

Removing and installing tyre pressure sensor, tyre pressure sensor without valve, production version
Special tools and workshop equipment required     Torque wrench -V.A.G 1410- Ca ...

Removing and installing tyre pressure sensor, Beru tyre pressure monitoring system
View of Beru system   WARNING After tyre sealant has been used, the tyre pressure sensor of the respe ...
