Volkswagen Golf Service & Repair Manual: Removing and installing Valeo heat exchanger, RHD vehicles

Special tools and workshop equipment required

Drip tray for workshop hoist -VAS 6208-


Removing and installing Valeo heat exchanger, RHD vehicles

Hose clamps up to 25 mm -3094-
Compressed air gun, commercially available


Removing and installing Valeo heat exchanger, RHD vehicles

Engine bung set -VAS 6122-
Removing
–  Heed the safety precautions → Chapter „Safety instructions“.


Removing and installing Valeo heat exchanger, RHD vehicles

Vehicles with TDI engine:
–  Press release buttons on crankcase breather hose -1- and detach hose from cylinder head cover.
–  Detach vacuum hoses from air pipe -arrows- to permit access.
–  Loosen hose clip -3-.
–  Remove bolt -2-, swivel air pipe with connection rearwards and detach from turbocharger.
Continuation for all vehicles:


Removing and installing Valeo heat exchanger, RHD vehicles

–  Mark installation position of coolant hoses -1- and -4-.
  Note
The heat exchanger is designed for a particular direction of flow of the coolant. Therefore, the coolant hoses must not be interchanged when connecting them.
–  Clamp off coolant hoses -1- and -4- using hose clamps, up to 25 mm -3094-.
–  Lift retaining clips -2- and -3-.
–  Disconnect coolant hoses -1- and -4- from heat exchanger for heater.


Removing and installing Valeo heat exchanger, RHD vehicles

–  Push a piece of hose -A- onto upper connection.
Insert compressed air gun into end of hose.
–  Hold drip tray -B- under connection -C- and carefully blow coolant out of heat exchanger using compressed air gun.
–  Seal off open lines and connections with clean plugs from engine bung set -VAS 6122-.
–  Remove baffle plate → Chapter.
–  Remove glove compartment → General body repairs, interior; Rep. gr.68.
–  Removing footwell vent on front passenger side → Chapter.
–  Remove centre console trim in footwell → General body repairs, interior; Rep. gr.68.
–  Vehicles with auxiliary air heater: Remove auxiliary air heater element -Z35- with auxiliary air heater control unit -J604- → Chapter.
–  Cover area beneath coolant hose connections in plenum chamber with, e.g., impermeable sheeting and absorbent paper.


Removing and installing Valeo heat exchanger, RHD vehicles

–  Lift locking element -6-, remove clip -5- and pull coolant line -4- off heat exchanger.
  Note
The illustration shows a left-hand drive vehicle.
–  Remove bolt -3-.
–  Remove screw-type clip -2- and pull coolant line -1- off heat exchanger.
–  Seal off open lines and connections with clean plugs from engine bung set -VAS 6122-.


Removing and installing Valeo heat exchanger, RHD vehicles

–  Unscrew bolts -1-, -3- and -5-.
  Note
The illustration shows a left-hand drive vehicle.
–  Release retainer tabs -4--arrows- and detach cover -2-.


Removing and installing Valeo heat exchanger, RHD vehicles

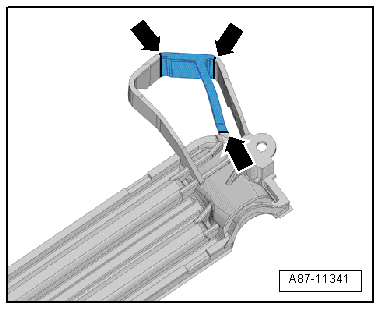

–  If noise insulation cannot be pulled out, cut open tabs on cover -arrows-.
–  Remove heat exchanger to left.
Installing
Installation is carried out in the reverse order. When installing, note the following:
  Note
Renew seals.
–  Check heater slot for dirt with heat exchanger removed.
–  If necessary, remove any dirt and coolant residue.
–  Vehicles with TDI engine: With auxiliary air heater element removed, check heating element slot for dirt and clean if necessary.


Removing and installing Valeo heat exchanger, RHD vehicles

–  Check foam seals -2- attached to heat exchanger -1- for damage and replace if necessary.
  Note
If the foam seal is not bonded in, it may roll up when the heat exchanger is fitted.
Cold air may flow past the heat exchanger if the foam seal is damaged or not properly fitted.


Removing and installing Valeo heat exchanger, RHD vehicles

–  Check connection -3- of heat exchanger and connection -2- of coolant pipes for damage or soiling.
–  Clean and smoothen sealing surface for seals.
–  Moisten new seals -4- with coolant (or lubricate lightly with silicone grease) and fit them to coolant pipe -1-.
–  Carefully slide heat exchanger into heater and air conditioning unit to stop.
  Note
When sliding in the heat exchanger, make sure not to damage the connections and coolant pipes.
–  Push coolant pipes into heat exchanger to stop.
Risk of malfunction on heat exchanger due to defective seals and leaks.Never squeeze seals.Never cant coolant pipes.Slide on coolant pipes completely.


Removing and installing Valeo heat exchanger, RHD vehicles

–  Fit new clip -5- or screw-type clip -2- onto joint of coolant pipe and heat exchanger.
–  Tighten bolt -3- → Chapter „Assembly overview - heater and air conditioning unit“.
–  Check clip and screw-type clip for proper seating on connections of heat exchanger and check coolant pipes. The coolant pipes must not contact air distribution housing or any other components.
–  Fill with coolant → Rep. gr.19.
–  Read event memory, and clear any entries displayed vehicle diagnostic tester in “Guided fault finding” mode.
–  As a final step, check operation of heater and air conditioner.
Specified torques:
→ Chapter „Assembly overview - heater and air conditioning unit“
Turbocharger; Assembly overview - turbocharger → Rep. gr.21.
Centre console; Assembly overview - centre console → General body repairs, interior; Rep. gr.68
Compartments/covers; Assembly overview - glove compartment → General body repairs, interior; Rep. gr.68.
