Volkswagen Golf Service & Repair Manual: Removing and installing telephone microphone -R38-
| – |
Switch off ignition and all electrical consumers, and remove
ignition key. |
| – |
Removing front interior light -W1-
→ Electrical system; Rep. gr.96. |
|
|
|
| – |

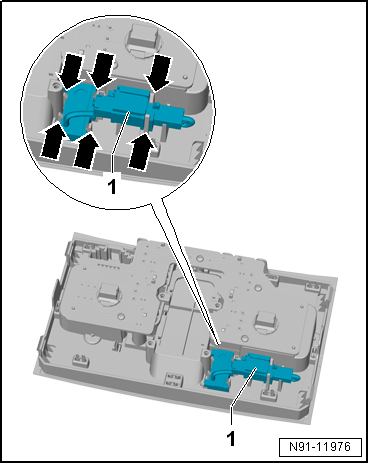

Release fasteners -arrows-. |
| – |
Remove telephone microphone -R38--1-
out of front interior light -W1-. |
| Installation is carried out in reverse order of removal. |
|
|
|
1 -
Telephone microphone -R38-
In front interior light -W1-.
Removing and installing
→ Chapter
2 -
...
Removing
–
Switch off ignition and all electrical consumers, and remove
ignition key.
–
Remove lug ...
