Removing

–	Switch off ignition and all electrical consumers, and remove ignition key.

–	Remove luggage compartment side trim panel (right-side) just enough so that the aerial amplifier for mobile telephone -R86- is accessible.

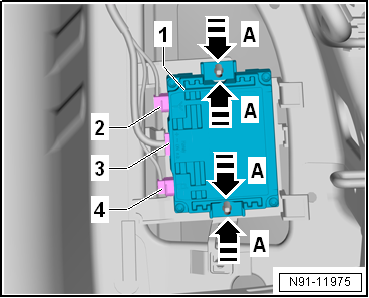

–	Push locking tabs in direction of arrow -A-.

–	Remove aerial amplifier for mobile telephone -R86--1- retainer.

–	Release and unplug connectors -2-, -3- and -4- at aerial amplifier for mobile telephone -R86--1-.

Installing

Installation is carried out in reverse order of removal.
