Volkswagen Golf Service & Repair Manual: Removing and installing seat adjustment operating unit -E470-/-E471-

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Seat frames / Front seats / Removing and installing seat adjustment operating unit -E470-/-E471-

  Note
Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate.
Special tools and workshop equipment required

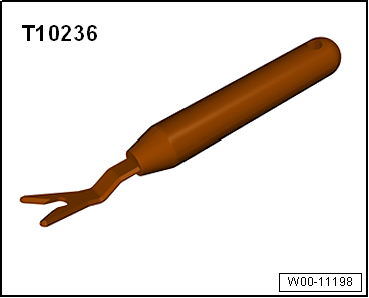

Release tool -T10236-
Release tool -T10236-

Removing
–  Remove seat trim on sill side → Chapter.

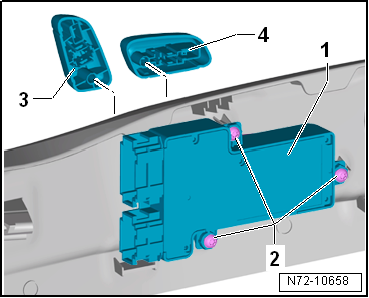

–  Carefully lever buttons -3- and -4- out of catches on seat adjustment operating unit using release tool -T10236-.
–  Remove bolts -2-.
–  Remove seat adjustment operating unit -1-.
Installing
Installation is carried out in reverse order.
Specified torques


Removing and installing seat adjustment operating unit -E470-/-E471-

Component Specified torque
Bolt -1- 1 Nm
Removing and installing lumbar support adjustment motor -V125-/-V126-/-V129-/-V130-
Special tools and workshop equipment required       Special pop rivet pliers -V.A.G 1753B- ...

Removing and installing massage control unit -J740-
Special tools and workshop equipment required         Removal wedge -3409 ...
