Volkswagen Golf Service & Repair Manual: Removing and installing relay and fuse carrier behind dash panel, RHD vehicles

Volkswagen Golf Service & Repair Manual / Electrical system / Wiring / Relay carriers, fuse holders, electronics boxes / Removing and installing relay and fuse carrier behind dash panel, RHD vehicles

Removing
–  With ignition switched off, disconnect earth cable from battery → Chapter.
–  Remove dash panel → General body repairs, interior; Rep. gr.70.


Removing and installing relay and fuse carrier behind dash panel, RHD vehicles

  Note
The exact assignment should be gleaned from the latest current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
Take photographs of the assignment, if necessary.

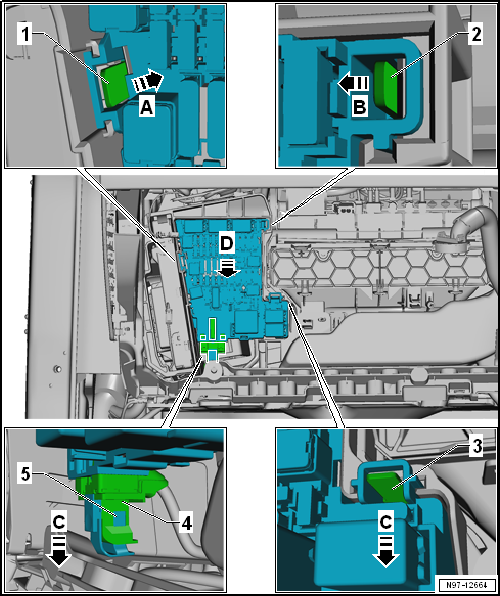

–  Press locking mechanism -5- on both sides and pull it in direction of arrow -C-.
–  Pull off connector -4- in direction of arrow -C-.
–  Release retaining tab -1- in direction of arrow -A-.
–  Release retaining tab -2- in direction of arrow -B-.
–  Release retaining tab -3- in direction of arrow -C-.
–  Pull fuse holder C -SC- towards rear -arrow D- out of bracket.
–  Disconnect electrical wiring.


Installing
Installation is carried out in the reverse sequence.
