Volkswagen Golf Service & Repair Manual: Assembly overview - track rod, multi-link suspension, four-wheel drive

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Rear suspension, drive shaft / Suspension link, track rod / Assembly overview - track rod, multi-link suspension, four-wheel drive

Assembly overview - track rod, multi-link suspension, four-wheel drive

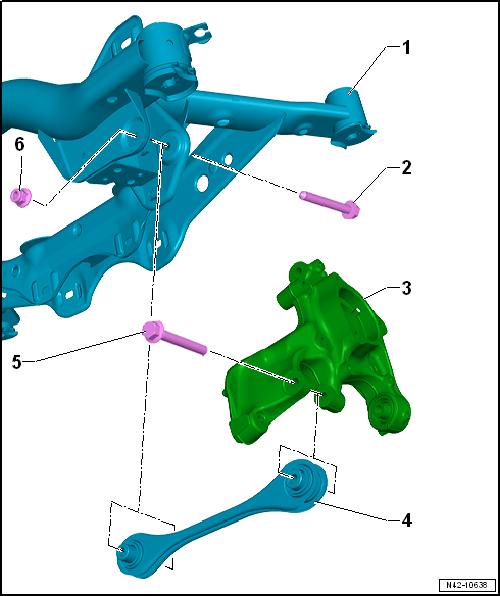

1 -  Subframe
2 -  Bolt
Renew after removing
70 Nm +180°
3 -  Wheel bearing housing
4 -  Track rod
Removing and installing → Chapter
5 -  Bolt
Renew after removing
Always tighten threaded connections in unladen position → Chapter
70 Nm +180°
6 -  Nut
Renew after removing
70 Nm +180°
