Removing

–	With ignition switched off, disconnect earth cable from battery → Chapter.

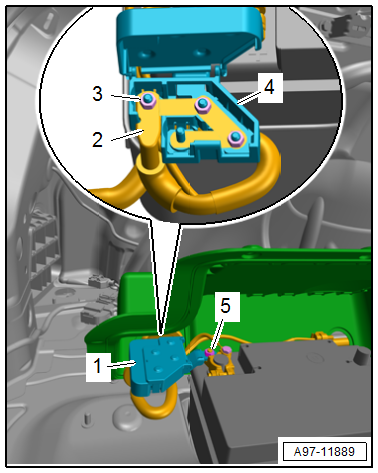

–	Open cover -1-.

–	Remove nut -3-.

–	Lay positive wire -2- to one side.

–	Remove nut -5-.

–	Remove fuse holder -4- from battery terminal clamp.

Installing

Installation is carried out in the reverse sequence.

Specified torques

→ Chapter „Overview of fitting locations – fuse box, battery (vehicles with high-voltage system)“
