Volkswagen Golf Service & Repair Manual: Removing and installing rear parking aid warning buzzer -H15-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Parking aid / Removing and installing rear parking aid warning buzzer -H15-

Removing
–  Remove C-pillar trim → General body repairs, interior; Rep. gr.70.

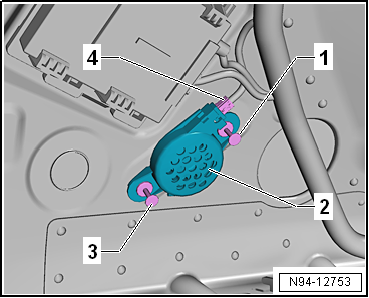

–  Lever out spreader clips -1- and -3-.
–  Remove rear parking aid warning buzzer -H15--2-.
–  Disconnect electrical connector -4-.
Installing
Installation is carried out in the reverse sequence.
