Volkswagen Golf Service & Repair Manual: Removing and installing parking aid control unit -J446-, RHD vehicle

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Parking aid / Removing and installing parking aid control unit -J446-, RHD vehicle

  Note
When renewing the control unit, select Renew function for the respective control unit in Guided fault finding or Guided functions mode → Vehicle diagnostic tester.
Removing

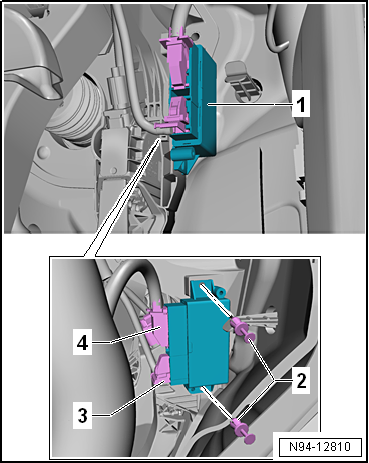

–  Remove footwell cover on driver side → General body repairs, interior; Rep. gr.68.

–  Release and pull out spreader rivets -2-.
–  Remove control unit -1-.
–  Disconnect connectors -3 and 4-.


Removing and installing parking aid control unit -J446-, RHD vehicle

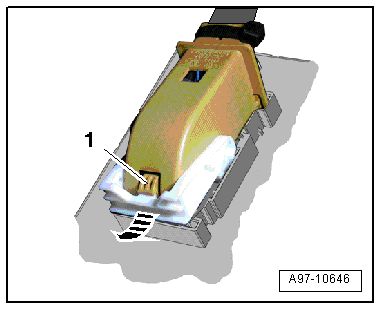

–  To do so, press locking detent -1-, swing retainer in -direction of arrow- and pull off connector.
Installing
Installation is carried out in the reverse sequence.
