Volkswagen Golf Service & Repair Manual: Removing and installing operating unit for window regulator in driver door
-E512-
 Note
| The removal and installation procedures are described for
LHD vehicles. Removal and installation for RHD vehicles are
similar. |
| – |
Remove front door trim panel
→ General body repairs, interior; Rep. gr.70. |
|
|
|
| – |

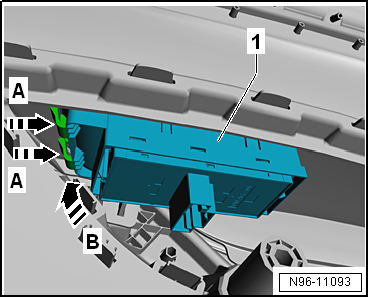

Press fasteners on trim -1- for
operating unit for window regulator in driver door -E512- in
direction of arrow -A-. |
| – |
Remove trim -1- for operating
unit for window regulator in driver door -E512- from door trim
panel in direction of arrow -B-. |
|
|
|
| – |

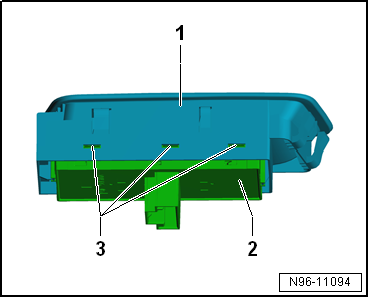

Using a small screwdriver, release locking devices
-3- on both sides. |
| – |
Remove operating unit for window regulator in driver door
-E512--2- from trim
-1-. |
| Installation is carried out in the reverse sequence. |
|
|
|
