Volkswagen Golf Service & Repair Manual: Removing and installing bracket for net partition

Removing
–  Remove luggage compartment side trim → Chapter.

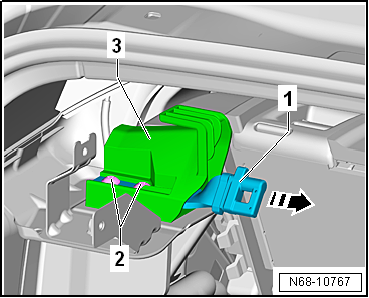

–  Pull belt webbing aside, and unscrew bolts -2-.
–  Pull bracket for net partition -1- out of belt guide -3--arrow-, and remove it.
Installing
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - rear outer three-point seat belt“
