Volkswagen Golf Service & Repair Manual: Removing and installing onboard supply control unit -J519-, LHD vehicles

Volkswagen Golf Service & Repair Manual / Electrical system / Wiring / Control units / Removing and installing onboard supply control unit -J519-, LHD vehicles

  Note
When renewing the control unit, select Renew function for the respective control unit in Guided fault finding or Guided functions mode → Vehicle diagnostic tester.
Removing
–  Switch off ignition.
–  Remove ignition key, if inserted.
–  Remove footwell cover on driver side → General body repairs, interior; Rep. gr.68.
–  Remove lower A-pillar trim → General body repairs, interior; Rep. gr.70.
–  Remove foot rest → General body repairs, interior; Rep. gr.70.

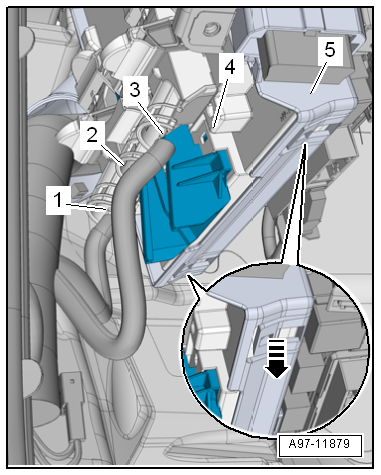

–  Unplug electrical connectors -1, 2, 3-.


Removing and installing onboard supply control unit -J519-, LHD vehicles

–  Press locking detent -1- to disconnect connectors.
–  Swing retainer in -direction of arrow- and pull off connector.


Removing and installing onboard supply control unit -J519-, LHD vehicles

–  Release retaining springs -arrow-, swivel onboard supply control unit -4- out of bracket -5- and remove downwards.
Installing
Installation is carried out in the reverse sequence.
