Volkswagen Golf Service & Repair Manual: Removing and installing oil pump

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine lubrication / Sump, oil pump / Removing and installing oil pump

Removing

–	Remove sump (bottom section) → Chapter.

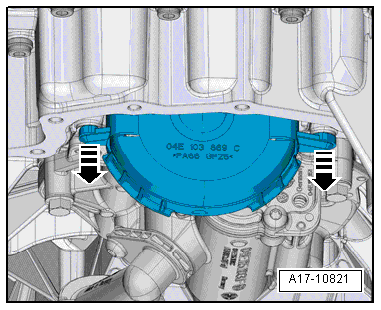

–	Unclip cover for oil pump drive sprocket -arrows-.

Removing and installing oil pump

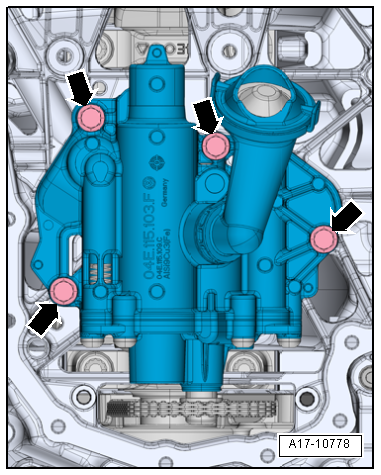

–	Remove bolts -arrows-.

–	Guide out oil pump with drive sprocket under drive chain.

Installing

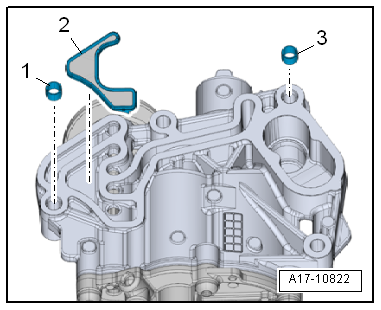

–	Check that dowel sleeves -1, 3- are fitted in oil pump.

Removing and installing oil pump

–	Fit seal with strainer -2- in oil pump.

Installation is carried out in the reverse order; note the following:

–	Turn oil pump drive sprocket by hand to check oil pump for ease of movement.

Note

Renew sluggish oil pump.

–	Fit oil pump with drive sprocket into drive chain and secure.

–	Install lower part of sump → Chapter.

–	Replenish engine oil and check oil level → Booklet.

Specified torques

→ Chapter „Assembly overview - sump and oil pump“

Removing and installing oil pump

Removing and installing lower part of sump

Special tools and workshop equipment required Flat scraper Commercially available scraper ...

Removing and installing upper part of sump

Special tools and workshop equipment required Allen key, long reach -T10058- ...
