Volkswagen Golf Service & Repair Manual: Removing and installing cover cap, without lock cylinder

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Front door, central locking / Door components / Removing and installing cover cap, without lock cylinder

Note

The cover cap is installed when no lock cylinder is fitted.

Removing

Special tools and workshop equipment required

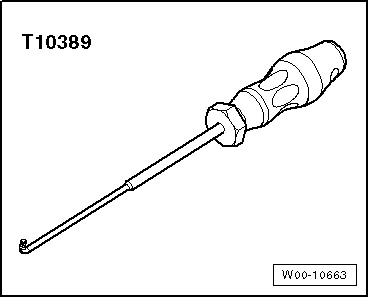

Assembly tool -T10389-

Removing and installing cover cap, without lock cylinder

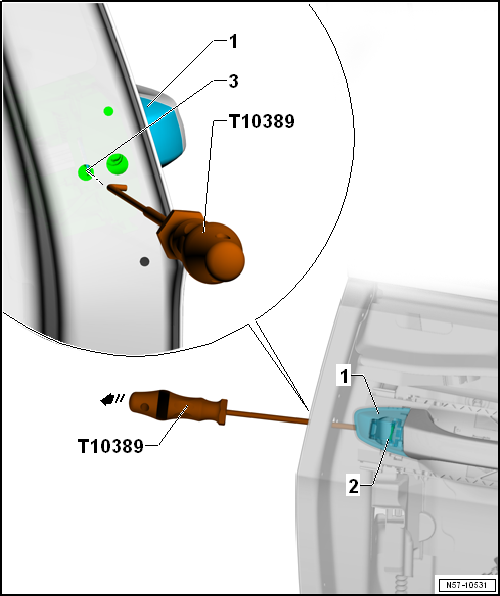

–	Remove plugs -3-.

–	Insert assembly tool -T10389- approx. 44 mm into the door behind locking hook -2- of the door handle bracket.

–	Pull assembly tool -T10389- approx. 5 mm backwards -arrow- until hook is detached.

Removing and installing cover cap, without lock cylinder

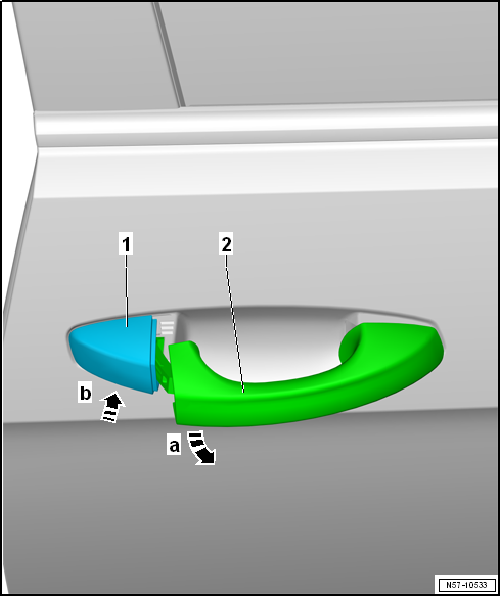

–	Pull door handle -1- off door -arrow a-.

–	Pull cover cap -1- out of mounting bracket -arrow b-.

Installing

Removing and installing cover cap, without lock cylinder

–	Pull door handle -2- off door in direction of -arrow a-.

–	Push cover cap -1- into mounting bracket -arrow b-.

Removing and installing cover cap, without lock cylinder

–	Slightly press cover cap -1- onto door.

–	Insert flat-bladed screwdriver -4- approx. 40 mm into door handle bracket until locking hook -3- is reached.

–	Press cap -1- onto door.

–	Push screwdriver approx. 5 mm into hole -arrow- until hook locks in place -3-.

–	Insert plug -5-.

Removing and installing cover cap, for lock cylinder

Removing and installing cover cap, for lock cylinder Note When removing lock cylinder cover cap, the screwdriver should not be turned a ...

Removing and installing lock cylinder

Removing and installing lock cylinder Special tools and workshop equipment required N ...
