Volkswagen Golf Service & Repair Manual: Removing and installing oil level and oil temperature sender -G266-

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine lubrication / Sump, oil pump / Removing and installing oil level and oil temperature sender -G266-

Removing

–	Drain off engine oil.

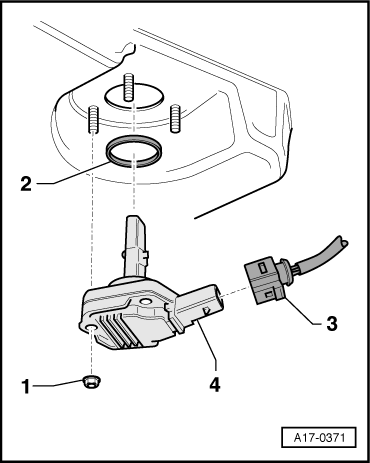

–	Disconnect electrical connector -3-.

–	Undo nuts -1- and remove oil level and oil temperature sender -G266--item 4-.

Installing

Installation is carried out in the reverse order; note the following:

Note

Renew seal -2-.

–	Replenish engine oil and check oil level → Booklet.

Specified torques

→ Chapter „Assembly overview - sump and oil pump“
