Special tools and workshop equipment required

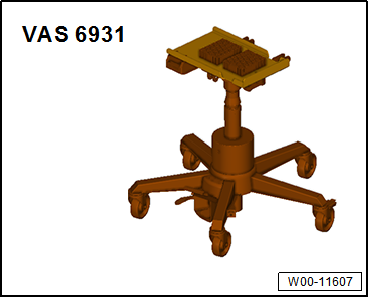

Engine and gearbox jack -VAS 6931-

Note

The removal and installation procedures may have to be modified slightly depending on engine fitted.

Removing and installing heat shield for rear silencer

Removing

–	Loosen bracket for rear silencer and slightly lower using the engine and gearbox jack -VAS 6931- → Rep. gr.26.

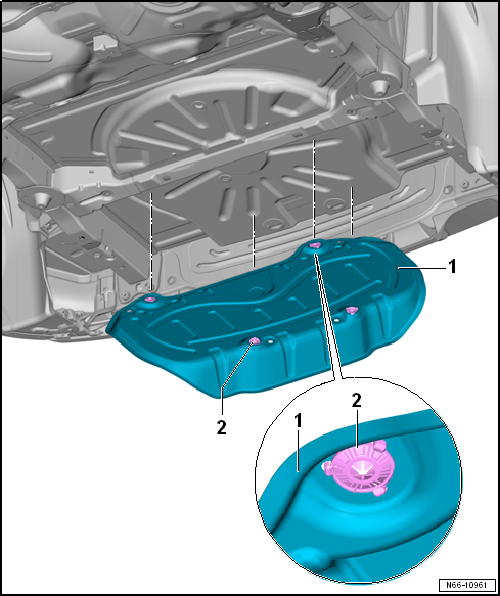

–	Loosen lock washers -2-.

–	Remove heat shield -1-.

Installing

Installation is carried out in reverse order.
