Volkswagen Golf Service & Repair Manual: Removing and installing heat shield for centre exhaust system

  Note
The removal and installation procedures may have to be modified slightly depending on engine fitted.

Removing and installing heat shield for centre exhaust system

Removing

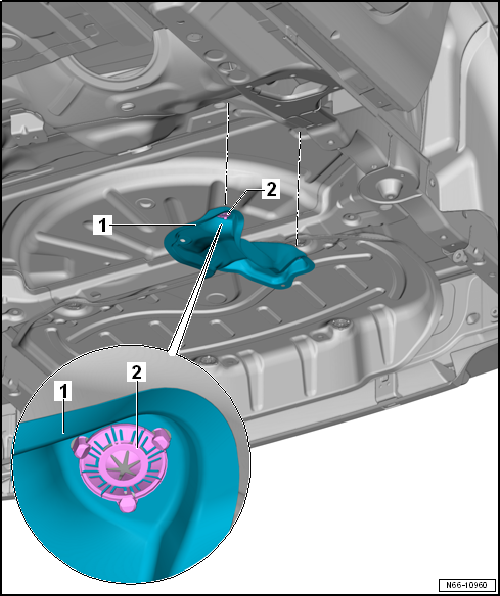

–  Removing rear exhaust system → Rep. gr.26.
–  Loosen lock washers -2-.
–  Remove heat shield -1-.
Installing
Installation is carried out in reverse order
Removing and installing underbody heat shield
  Note The removal and installation procedures may have to be modified slightly depending on engine fitted. Removing –  Removing centre u ...

Removing and installing heat shield for rear silencer
Special tools and workshop equipment required         Engine and gearbox jack -VAS 6931- ...
