Note

Only the left side is shown. The right side is similar.

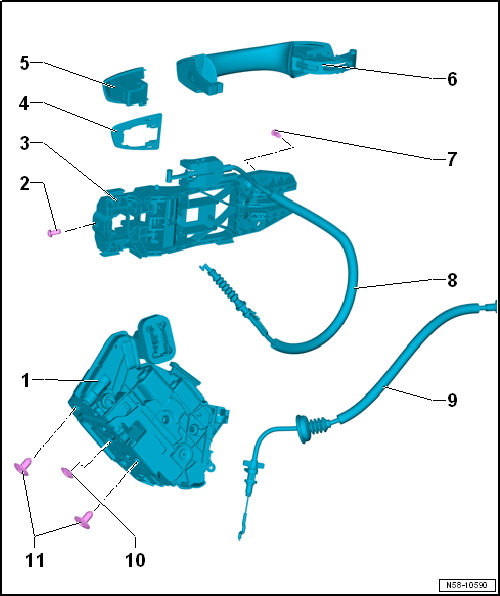

Assembly overview - door handle and door lock

1 -

Door lock

Removing and installing → Chapter

2 -

Bolt

1.5 Nm
For locking bar in door handle bracket

3 -	Mounting bracket

Removing and installing → Chapter

4 -

Base

5 -

Cap

Removing and installing → Chapter.

6 -	Door handle

Removing and installing → Chapter.

7 -

Bolt

1.5 Nm
Bearing plate is loosened from door when this bolt is loosened

8 -

Cable

From door lock -1- to mounting bracket -3

9 -

Cable

From inner door handle to door lock -1-
With grommet to passage on cover

10 -

Cap

11 -

Bolt

Qty. 2
18 Nm
