Removing

–	Release hose clips -1- and -2-, and remove air pipe.

Removing and installing Hall sender -G40-

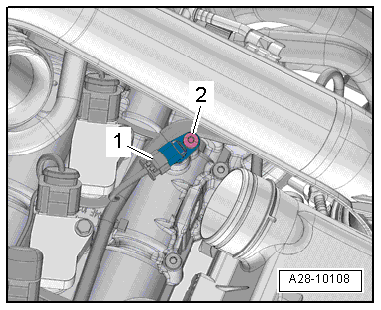

–	Disconnect electrical connector -1-.

–	Unscrew bolt -2- and remove Hall sender -G40-.

Installing

–	Install in reverse order.

Specified torques

→ Chapter „Assembly overview - ignition system“
