Volkswagen Golf Service & Repair Manual: Removing and installing front footwell light -K269-, front passenger side

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Lights / Removing and installing front footwell light -K269-, front passenger side

Removing

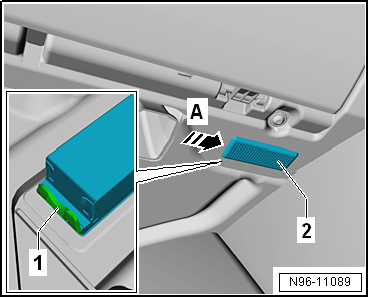

–  Using a flat screwdriver, press in locking lug -1- at point indicated by arrow -A-.
–  Lever out footwell light -2-.
–  Disconnect electrical connector.
Installing
Installation is carried out in the reverse sequence.
  Note
If an LED footwell light is faulty, the entire light must be renewed.
–  Test functionality.
