Volkswagen Golf Service & Repair Manual: Contact surface cleaning set -VAS 6410-

Using contact surface cleaning set -VAS 6410-

The contact surface cleaning set -VAS 6410- allows optimal repair quality to be achieved in the area of vehicle electrics. The tools allow performing repair work in the area of the sensor in wiring harnesses for threaded connections in the high-current circuit (starting and charge current). The contact surface cleaning set -VAS 6410- is adapted to the structural conditions of vehicles and ensures the process security of repair work as well as a comfortable procedure.
  Note
The illustrations shown here are just a few examples of repair work.

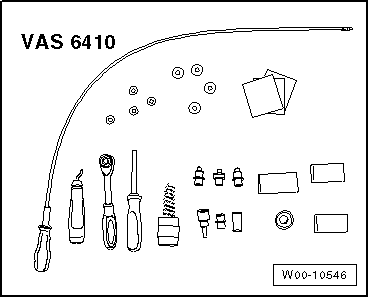

Contact surface cleaning set VAS 6410


Using contact surface cleaning set -VAS 6410-

Special connector systems
  Note If necessary, any housing catches in place (secondary locking mechanisms) must be released or removed prior to disengaging the contacts using the ...

Repairing ring terminals
Special tools and workshop equipment required     VAG 1331   Note ...
