Volkswagen Golf Service & Repair Manual: Removing and installing fixed rear door window

Removing


Removing and installing fixed rear door window

–  Remove door trim → General body repairs, interior; Rep. gr.70.
–  Remove window slot seal → Chapter.
–  Remove window channel → Chapter.

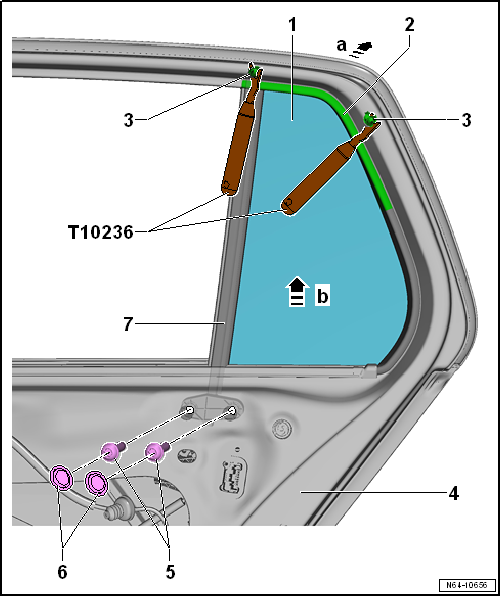

–  Lift out cover caps -6-.
–  Remove bolts -5-.
–  Pull seal -2- off metal flange.
–  Guide release tool -T10236- one after the other under both clips -3-.
–  When doing this, push door window -1- slightly outwards -arrow a- until clips -7- are pushed out of door -4-.
–  Then pull door window -1- with web -7- upwards -arrow b- out of door -4-.
Installing


Removing and installing fixed rear door window

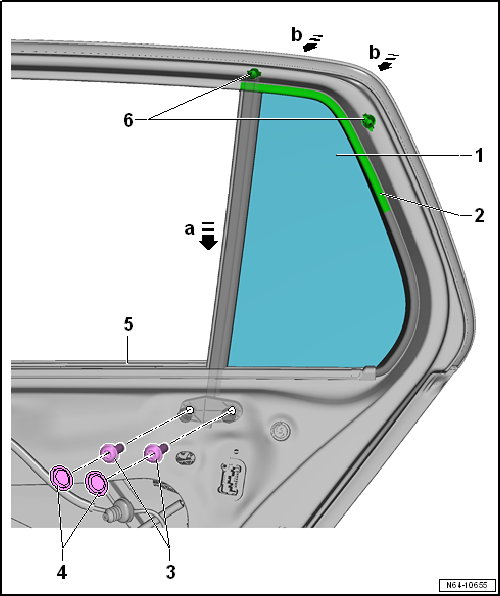

–  Slide door window -1- into door -arrow a-.
–  Push door window against door -5- until clips -6- engage audibly -arrows b-.
–  Tighten bolts -4-.
–  Pull seal -2- around flange.
Specified torques
  Fixed rear door window → Chapter „Assembly overview
