Volkswagen Golf Service & Repair Manual: Removing and installing exhaust camshaft oil seal, pulley end, engine codes CPTA, CHPA, CZEA, CZDA

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine cylinder head, valve gear / Valve gear / Removing and installing exhaust camshaft oil seal, pulley end, engine codes CPTA, CHPA, CZEA, CZDA

Special tools and workshop equipment required

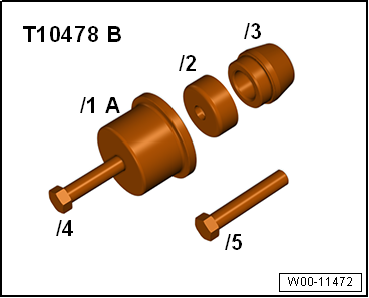

Assembly tool -T10478 B-
Removing
–  Detach toothed belt from camshafts → Chapter.
–  Remove engine support → Chapter.


Removing and installing exhaust camshaft oil seal, pulley end, engine codes CPTA, CHPA, CZEA, CZDA

–  Unscrew bolt -1- and remove camshaft sprocket.


Removing and installing exhaust camshaft oil seal, pulley end, engine codes CPTA, CHPA, CZEA, CZDA

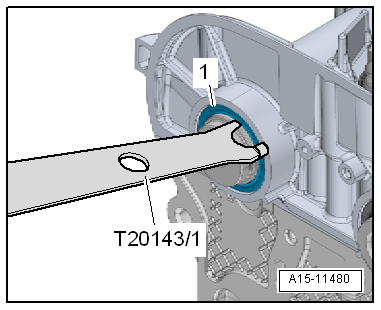

–  Remove seal -1- using extractor hook -T20143/1-.
Installing
  Note
Do not lubricate new seal.


Removing and installing exhaust camshaft oil seal, pulley end, engine codes CPTA, CHPA, CZEA, CZDA

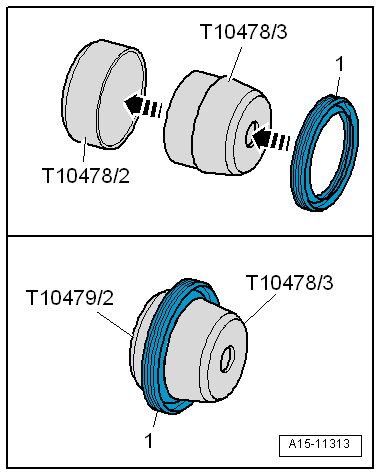

–  Fit seal -1- over fitting sleeve -T10478/3- onto guide sleeve -T10478/2-.
Installation position: closed end of seal faces fitting sleeve.
–  Separate fitting sleeve and guide sleeve.


Removing and installing exhaust camshaft oil seal, pulley end, engine codes CPTA, CHPA, CZEA, CZDA

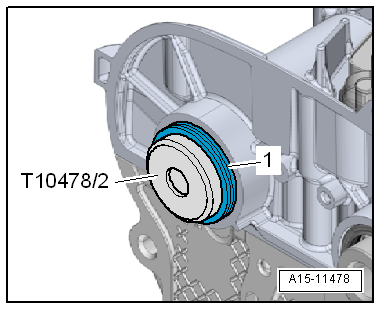

–  Fit guide sleeve -T10478/2- with oil seal -1- to camshaft.


Removing and installing exhaust camshaft oil seal, pulley end, engine codes CPTA, CHPA, CZEA, CZDA

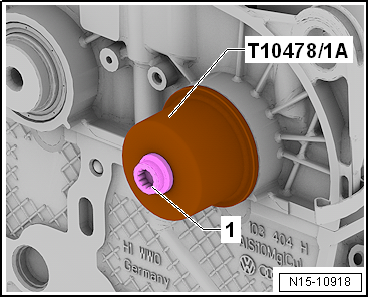

–  Draw in thrust piece -T10478/1A- to stop using bolt -1- for camshaft pulley.
–  Install toothed belt (adjust valve timing) → Chapter.
–  Installing engine support → Chapter.


Removing and installing exhaust camshaft oil seal, pulley end, engine codes CPTA, CHPA, CZEA, CZDA
