Volkswagen Golf Service & Repair Manual: Removing and installing sun visor centre mount

  Note
Removal and installation is described for the sun visor centre mount on the driver side. Follow same instructions for the front passenger side as appropriate.
Removing

–  Detach sun visor from sun visor centre mount and fold it aside.

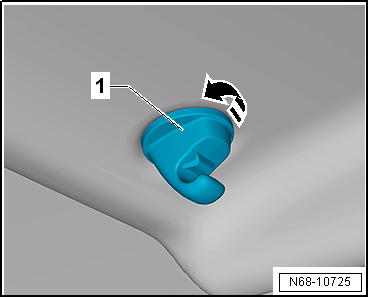

–  Turn sun visor centre mount -1- anti-clockwise -arrow- through 90° (1/4 turn).
–  Remove sun visor centre mount -1- downwards.
Installing
Installation is carried out in reverse order.
