Volkswagen Golf Service & Repair Manual: Removing and installing centre underbody covers

Note

The removal and installation procedures may have to be modified slightly depending on engine fitted.

Removing and installing centre underbody covers

Removing

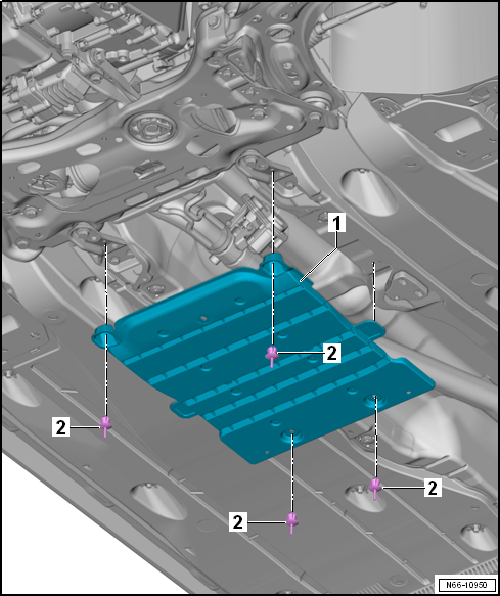

Unclip spreader river -2- and remove centre underbody panels.
Installing
Installation is carried out in reverse order.
Removing and installing front underbody cover – e-Golf
Removing –  Remove bolts -2-. –  Unscrew nuts -3-. –  Remove underbody cover -1-. Installing ...

Removing and installing short centre underbody cover
  Note The removal and installation procedures may have to be modified slightly depending on engine fitted. Removing Unclip spreader river -2- and r ...
