Volkswagen Golf Service & Repair Manual: Removing and installing anti-theft alarm sensor -G578-, version with 2 bolts

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Anti-theft alarm system / Removing and installing anti-theft alarm sensor -G578-, version with 2 bolts

Removing

–  Remove front interior light -WX1- → Chapter.

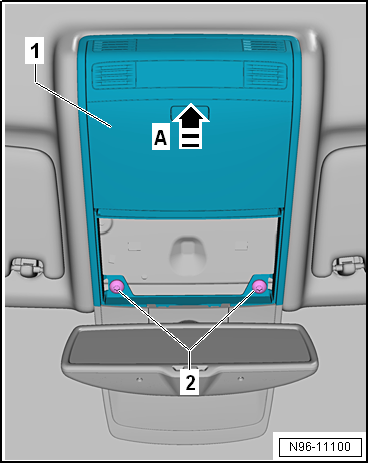

–  Remove bolts -2-.
–  Remove roof module -1- in direction of arrow -A-.
–  Disconnect electrical connector.


Removing and installing anti-theft alarm sensor -G578-, version with 2 bolts

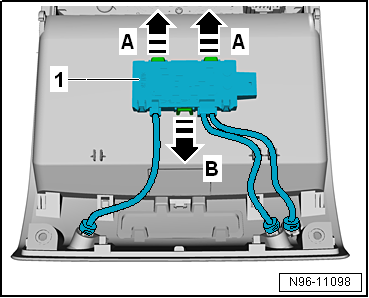

–  Release retaining tabs in direction of arrows -A- and -B-.
–  Remove anti-theft alarm sensor -G578--1- from roof module.


Removing and installing anti-theft alarm sensor -G578-, version with 2 bolts

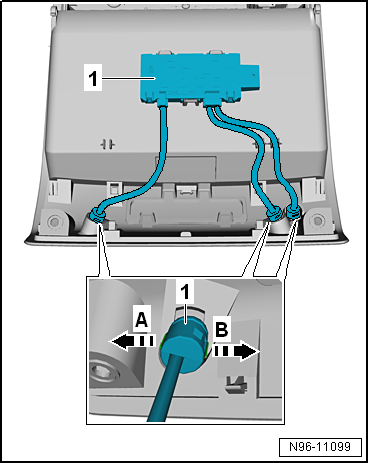

–  Release retaining tabs in direction of arrows -A- and -B-.
–  Remove single sensor -1- from roof module.
Installing
Install in the reverse order of removal, observing the following:
  Note
The anti-theft alarm sensor -G578- needs to be parameterised after renewal.
–  Parameterise anti-theft alarm system sensor -G578- → Vehicle diagnostic tester.
–  Test functionality.
Specified torques
→ Chapter „Assembly overview - interior monitor“
