The boiling points given in the table below are always based on an atmospheric pressure of 1 bar. If the pressure on a liquid is changed, its boiling point changes also.

It is well known that, for example, the lower the pressure, the lower the temperature at which water boils.

The vapour pressure curves for water and for refrigerant R134a show that at constant pressure and falling temperature the vapour becomes liquid (in the condenser), and that when pressure drops, the refrigerant changes from liquid into the vapour state (evaporator).

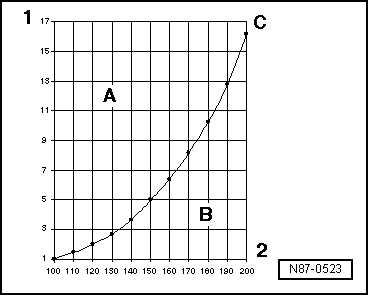

Vapour pressure curve for water

A -

Liquid

B -

Gaseous

C -	Vapour pressure curve for water

1 -	Pressure on the liquid in bar (absolute)

2 -	Temperature in °C

Pressure and boiling point

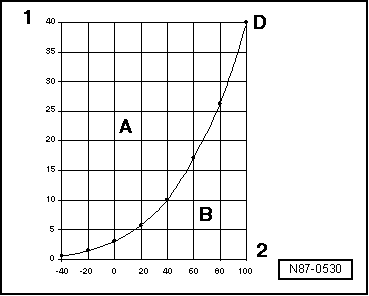

Vapour pressure curve for refrigerant R134a

A -

Liquid

B -

Gaseous

D -	Vapour pressure curve for refrigerant R134a

1 -	Pressure on the liquid in bar (absolute)

2 -	Temperature in °C

Pressure and boiling point
