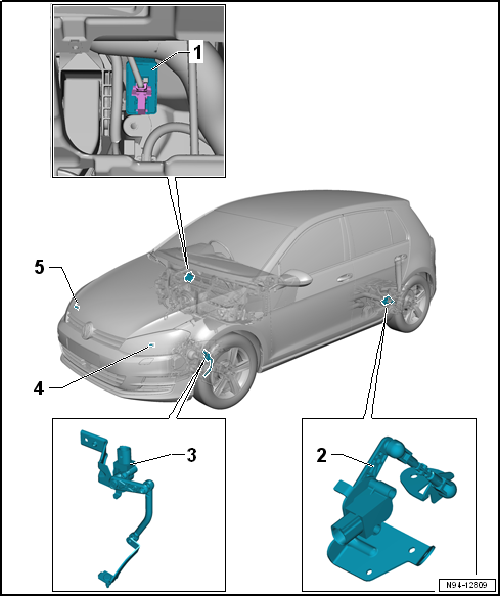

Assembly overview - automatic headlight range control, RHD vehicles

1 -  Control unit
Removing and installing → Chapter
Versions without cornering light:
Headlight range control unit -J431-
Versions with cornering light:
Cornering light and headlight range control unit -J745-
2 -  Rear left vehicle level sender -G76-
Fitting location: on rear suspension link
Assembly overview → Running gear, axles, steering; Rep. gr.43
3 -  Front left vehicle level sender -G78-
Fitting location: on front suspension link
For versions with gas discharge headlights and cornering light
Assembly overview → Running gear, axles, steering; Rep. gr.43
4 -  Left headlight range control motor -V48-
Removing and installing → Chapter
5 -  Right headlight range control motor -V49-
Removing and installing → Chapter
