Volkswagen Golf Service & Repair Manual: Pre-bleeding brake system pressure accumulator -VX70-
| Special tools and workshop equipment
required |
|
|
|
| Sealing plug repair kit -1H0 698 311 A- |
|
|
|
| – |

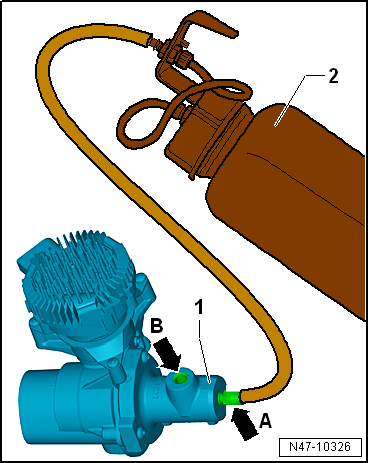

Connect commercially available bleed bottle
-2- to brake system pressure
accumulator -VX70--1- using
suitable bleed hose. |
| – |
Open bleeder valve -arrow A-. |
| – |
Fill in brake fluid until it flows bubble-free out of
threaded hole -arrow B-. |
| – |
Close bleeder valve -arrow A-. |
| – |
Seal threaded hole -arrow B-
using sealing plugs from repair kit -1H0 698 311 A-. |
| – |
Install brake system pressure accumulator -VX70-
→ Chapter. |
|
|
|
Note
Carry out subsequent bleeding when:
brake pedal travel is too long or so-called
»soft brake pedal«
...
