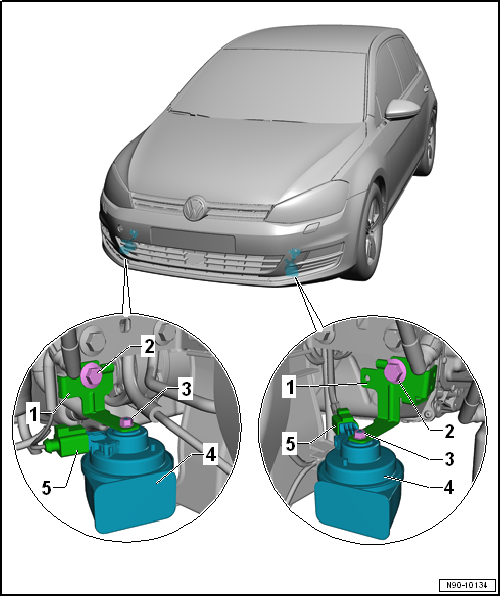

Volkswagen Golf Service & Repair Manual: Assembly overview - horn
| 1 - | Bracket |
| For horn |
| Removing and installing → Chapter |
| 2 - | Bolt |
| Specified torque: 18 Nm |
| 3 - | Nut |
| Specified torque: 9 Nm |
| 4 - | Horn |
| Treble horn -H2- installed on left. |
| Bass horn -H7- installed on right. |
| Removing and installing → Chapter |
| 5 - | Electrical connector |
Horn
...
Removing and installing treble horn -H2- / bass horn -H7-
Note
Removal and installation are described for the left side.
Removal and installation on the right side are carried out in
the same way.
...
