Volkswagen Golf Service & Repair Manual: Overview of fitting locations – controls in centre console

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches inside, anti- theft system / Controls / Overview of fitting locations – controls in centre console

Note

The illustration shows fitting locations for LHD vehicles. Fitting locations for RHD vehicles are similar.

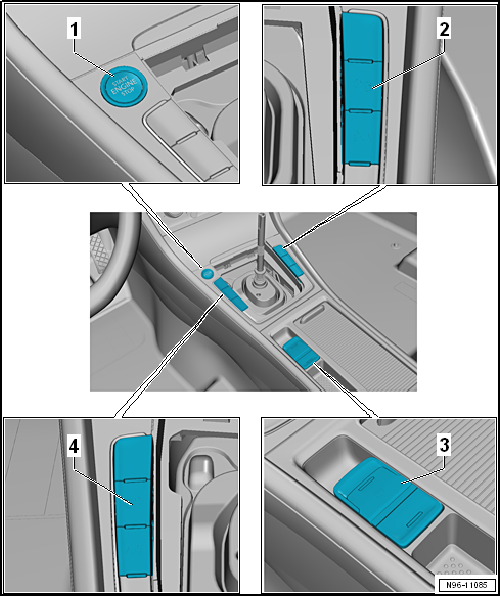

Overview of fitting locations – controls in centre console

1 -	Starter button -E378-

Removing and installing → Chapter

2 -	Switch module 2 in centre console -EX30-

Depending on vehicle equipment, the following buttons may be installed:

Parking aid button -E266-

Park assist steering button -E581-

Each of the buttons is installed in the switch module and cannot be removed individually.

Removing and installing → Chapter „Removing and installing switch module in centre console -EX23-/-EX30-“

3 -	Electromechanical parking brake button -E538- and auto-hold button -E540-

Version

Removing and installing → Chapter

4 -	Switch module 1 in centre console -EX23-

Depending on vehicle equipment, the following buttons may be installed:

TCS and ESP button -E256-

Driving program button -E598-

Start/stop operation button -E693-

Button for driver profile selection -E735-

Each of the buttons is installed in the switch module and cannot be removed individually.

Removing and installing → Chapter „Removing and installing switch module in centre console -EX23-/-EX30-“

Overview of fitting locations – controls in luggage compartment

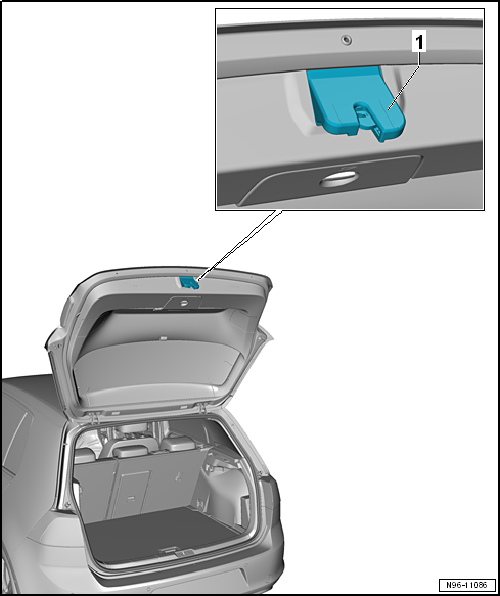

Overview of fitting locations – controls in luggage compartment

1 -	Rear lid contact switch

Rear lid contact switch for anti-theft alarm -F123-

Removing and installing → Chapter

Overview of fitting locations – controls in rear doors

1 - Rear driver side window regulator button -E711- Removing and installing → Chapter 2 - Rear passenger side wind ...

Overview of fitting locations – controls in roof trim

Note The illustration shows fitting locations for LHD vehicles. Fitting locations for RHD vehicles are similar. 1 - Driver vanity mirror contact ...
