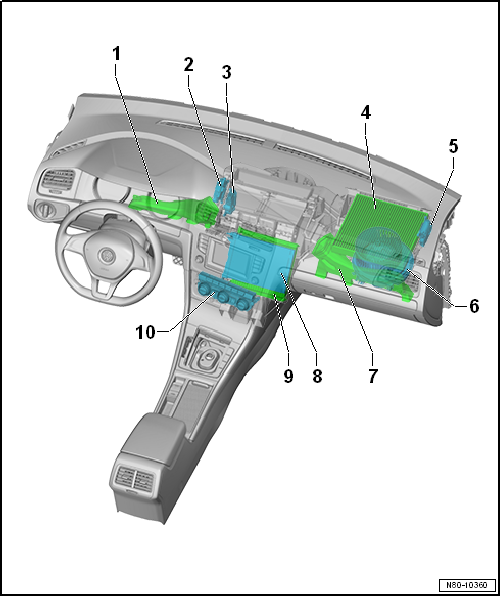

Overview of fitting locations - components inside of front passenger compartment, LHD vehicles

1 -  Footwell vent on driver side
Removing and installing → Chapter
Assembly overview → Chapter.
2 -  Temperature flap control motor -V68-
Removing and installing → Chapter
3 -  Air distribution flap control motor -V428-
Removing and installing → Chapter
4 -  Dust and pollen filter
Removing and installing → Chapter
5 -  Air recirculation flap control motor -V113-
Removing and installing → Chapter
6 -  Fresh air blower -V2-
Removing and installing → Chapter
7 -  Footwell vent on front passenger side
Removing and installing → Chapter
Assembly overview → Chapter.
8 -  Auxiliary air heater element -Z35- with auxiliary air heater control unit -J604-
Checking → Chapter
Removing and installing → Chapter
9 -  Heat exchanger
Removing and installing → Chapter
10 -  Operating and display unit
Removing and installing → Chapter
