Volkswagen Golf Service & Repair Manual: Measuring axial play of camshaft

Volkswagen Golf Service & Repair Manual / 4- cylinder injection engine(1.4 1 direct inction. turbocharger) / Engine cylinder head, valve gear / Valve gear / Measuring axial play of camshaft

Special tools and workshop equipment required

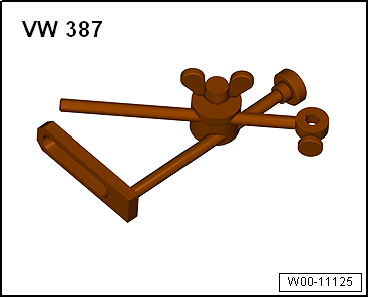

Universal dial gauge bracket -VW 387-

Measuring axial play of camshaft

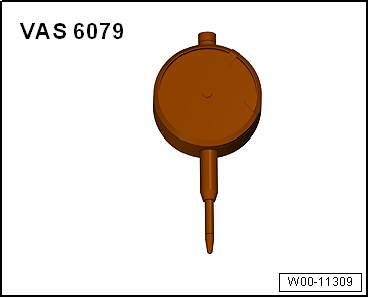

Dial gauge -VAS 6079-

Procedure

–	Remove camshaft housing → Chapter.

Measuring axial play of camshaft

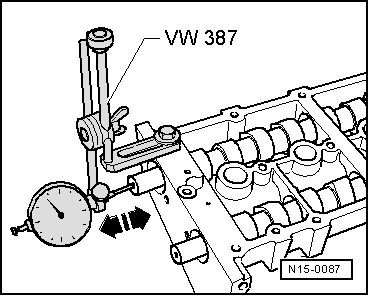

–	Secure dial gauge -VAS 6079- to camshaft housing with universal dial gauge bracket -VW 387- as shown in illustration.

–	Press camshaft against dial gauge by hand.

–	Set dial gauge to “0”.

–	Press camshaft away from dial gauge and read off value:

Axial clearance:

Wear limit: 0.25 mm.

Measuring axial play of camshaft
