Volkswagen Golf Service & Repair Manual: Measuring axial clearance of crankshaft

Risk of damage to bearing pedestals when the crankshaft is removed.If the bolts of the crankshaft bearing cap are loosened, the bearing pedestals of the cylinder block will be deformed, and damage to the bearings will result.Never remove the crankshaft.
Special tools and workshop equipment required

Universal dial gauge bracket -VW 387-


Measuring axial clearance of crankshaft

Dial gauge -VAS 6079-


Measuring axial clearance of crankshaft

Procedure

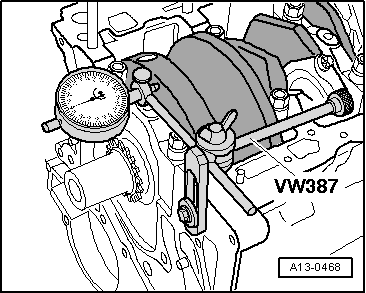

–  Screw dial gauge -VAS 6079- with universal dial gauge bracket -VW 387- to cylinder block as shown in the illustration.
–  Position dial gauge against crank web.
–  Press crankshaft against dial gauge by hand and set gauge to “0”.
–  Push crankshaft away from dial gauge and read off measured value.
Axial clearance: 0.066 … 0.233 mm.


Measuring axial clearance of crankshaft

Crankshaft dimensions
Risk of damage to bearing pedestals when the crankshaft is removed.If the bolts of the crankshaft bearing cap are loosened, the bearing pedestals of the cylinder block will be deformed, ...

Pistons and conrods
...
