Designation:

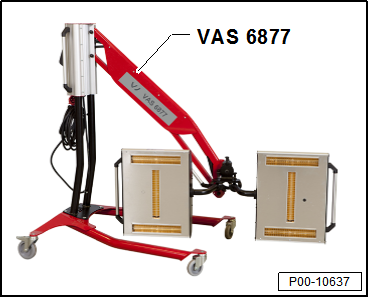

Infrared heater -VAS 6877-

Product description:

The infrared heater is used to dry putty, filler, base coat, top coat and clear coat on vertical or horizontal surfaces.

Short-wave infrared heater with one head

2 output stages with 12 pre-programmed settings and 3 user-defined programs with automatic timer control

Automatic distance measurement

Technical data:

400 V, 3 PH+PE

6 KW

9 A

16A fuse with delayed action

Items supplied:

Complete stand with timer and assembly instructions

Note

Observe manufacturer's instructions for assembly and use.
