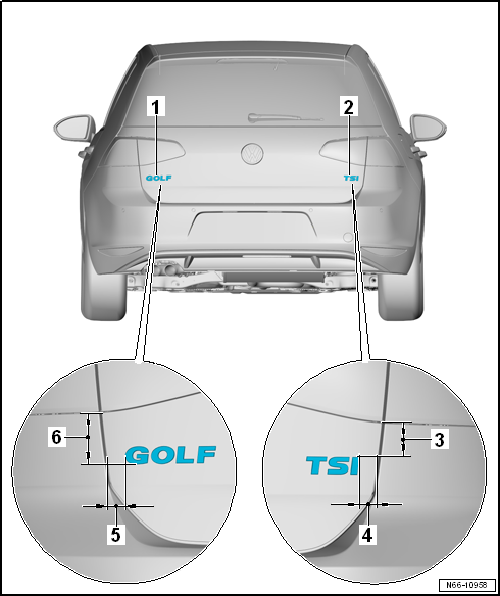

Volkswagen Golf Service & Repair Manual: Dimensions - lettering on rear lid
Note| When fitting the lettering, observe the fitting notes → Anchor. |
| 1 - | Lettering |
- Model designation.
| 2 - | Lettering |
- Engine designation
- For technical designations without engine designation, another dimension applies.
| 3 - | Height dimension |
- 50.5 ± 1 mm, from upper edge of lettering to tail light
- Additional lettering is bonded 6.0 ± 1 mm under engine designation
- The height dimension for technical designations without engine designation must measure 75.5 ± 1 mm from lower edge of lettering.
| 4 - | Horizontal dimension |
- 29.5 ± 1 mm, from outer edge of rear lid to lettering
- Side dimension for technical designations without engine designation must measure 29.5 ± 1 mm.
| 5 - | Horizontal dimension |
- 26.5 ± 1 mm, from outer edge of rear lid to lettering
| 6 - | Height dimension |
- 75.5 ± 1 mm, from lower edge of lettering to tail light
Dimensions - lettering on rear lid, “GTI/GTD”
Note
When fitting the lettering, observe the fitting notes
→ Anchor.
1 -
Lettering
Model designation
2 -
...
