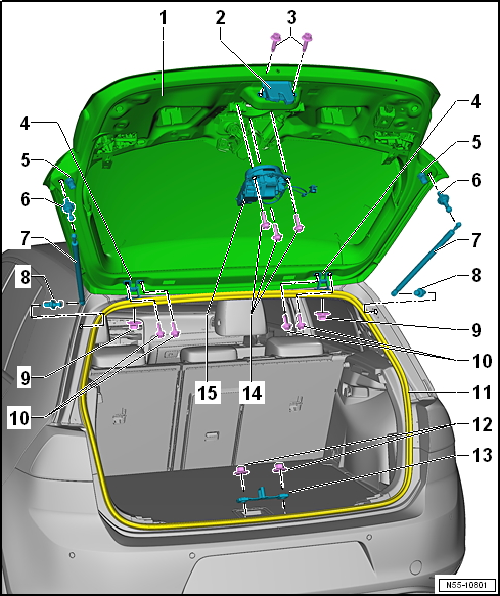

Assembly overview - rear lid

1 -

Rear lid

Removing and installing → Chapter
Adjusting → Chapter

2 -	Bonnet lock

Removing and installing → Chapter

3 -

Bolts

Qty. 2
20 Nm

4 -

Hinge

Left and right
Removing and installing → Chapter

5 -	Adjustment buffer

Left and right
Adjusting → Chapter

6 -	Ball-head pin

On rear lid
20 Nm + 45°

7 -

Gas strut

Removing and installing → Chapter
Releasing gas → Chapter

8 -	Ball-head pin

On side panel
20 Nm + 45°

9 -	Hexagon nut

Qty. 1 for each hinge
20 Nm + 45°

10 -

Bolts

Qty. 2 for each hinge
10 Nm

11 -

Seal

Removing and installing → Chapter

12 -	Hexagon nut

Qty. 2
20 Nm

13 -	Striker pin

Removing and installing → Chapter
Adjusting → Chapter

14 -

Bolts

Qty. 3
5 Nm

15 -	Operating mechanism

The manufacturer emblem can be renewed separately → Chapter
Removing and installing → Chapter
