Volkswagen Golf Service & Repair Manual: Connecting brake pedal to brake servo

Volkswagen Golf Service & Repair Manual / Brake system (hybrid) / Brake, brake mechanics / Brake pedal / Connecting brake pedal to brake servo

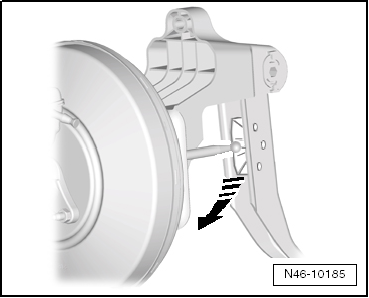

–	Hold ball head of push rod in front of mounting and push brake pedal in direction of brake servo, so that the ball head clicks into place.

–	Check engagement by pulling briefly on brake pedal.

Continue installation in reverse order.

Connecting brake pedal to brake servo

Separating brake pedal from brake servo

Special tools and workshop equipment required Release tool -T10159- – ...

Removing and installing brake pedal

It is not possible to remove the brake pedal separately. – To be able to remove it, pedal cluster with mounting bracket must be removed ...
