Volkswagen Golf Service & Repair Manual: Cavity sealing, rear body

Volkswagen Golf Service & Repair Manual / Vechile- specific paint information / Cavity sealing / Cavity sealing, rear body

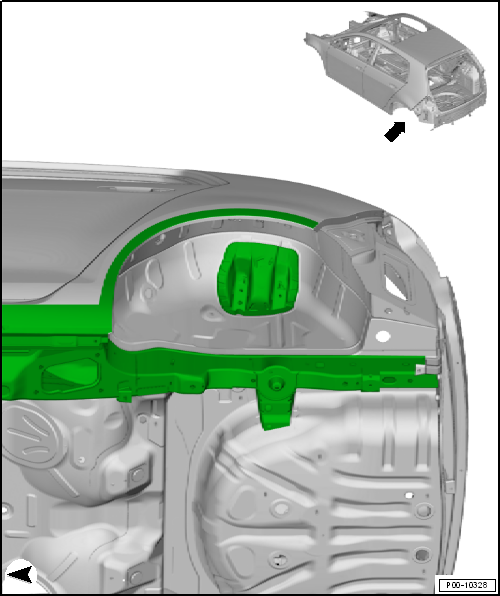

Cavity sealing, wheel housing and underbody at rear, 4-Motion vehicles

Illustration shows left side. The right side is the mirror image.

Note

The indicated areas have been treated with cavity sealant and must be resealed following repairs.

Cavity sealing, rear body

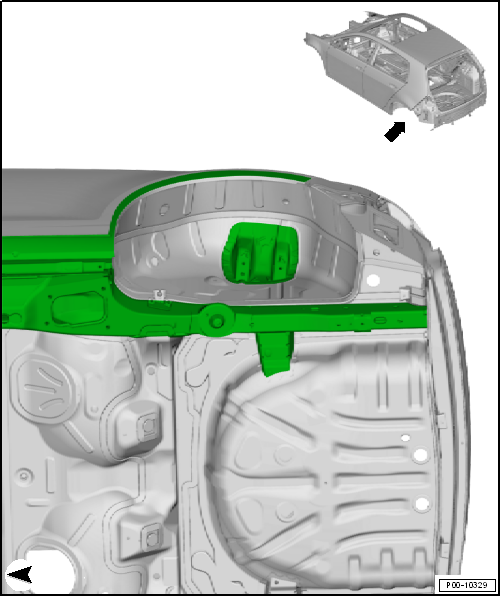

Cavity sealing, wheel housing and underbody at rear, vehicles with torsion beam rear suspension

Illustration shows left side. The right side is the mirror image.

Note

The indicated areas have been treated with cavity sealant and must be resealed following repairs.

Cavity sealing, rear body

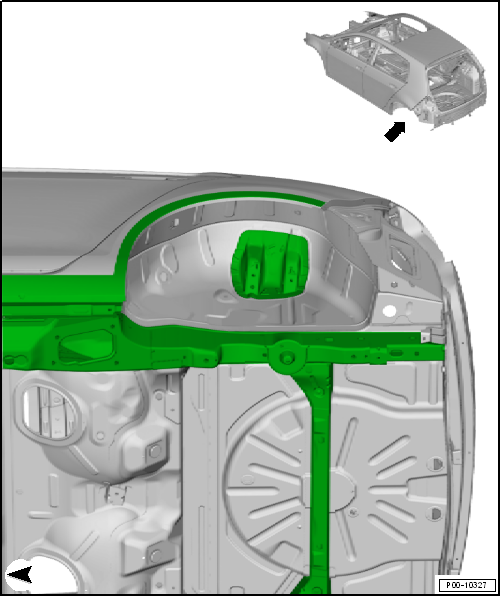

Cavity sealing, wheel housing and underbody at rear, vehicles with multi-link suspension

Illustration shows left side. The right side is the mirror image.

Note

The indicated areas have been treated with cavity sealant and must be resealed following repairs.

Cavity sealing, rear body

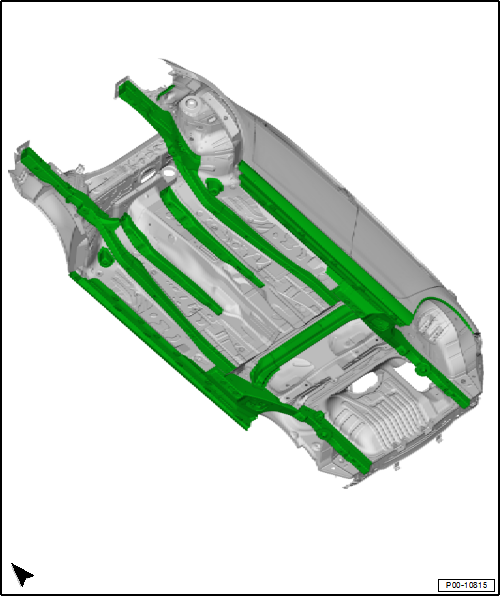

Cavity sealing, overview of body, hybrid vehicles

Cavity sealing, overview of body, hybrid vehicles

Note

The indicated areas have been treated with cavity sealant and must be resealed following repairs.

Cavity sealing, overview of body, hybrid vehicles

Cavity sealing, body at front and centre
